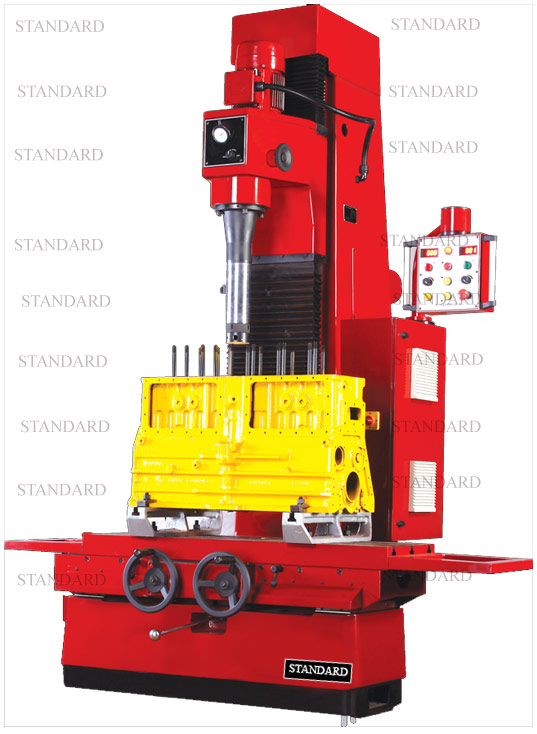

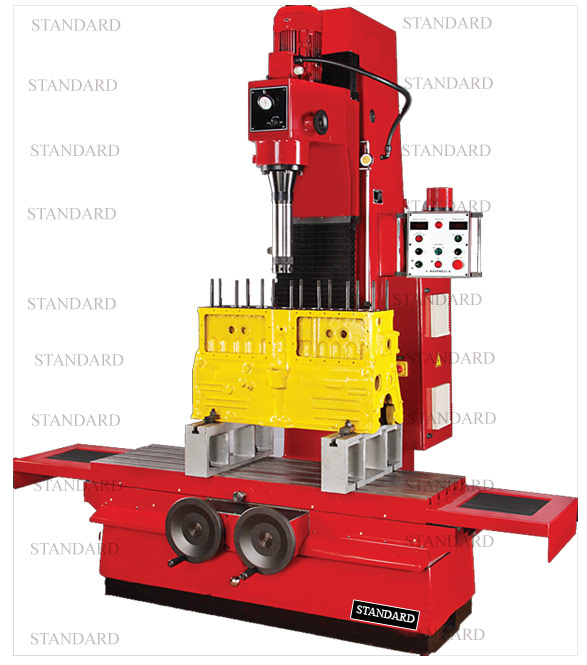

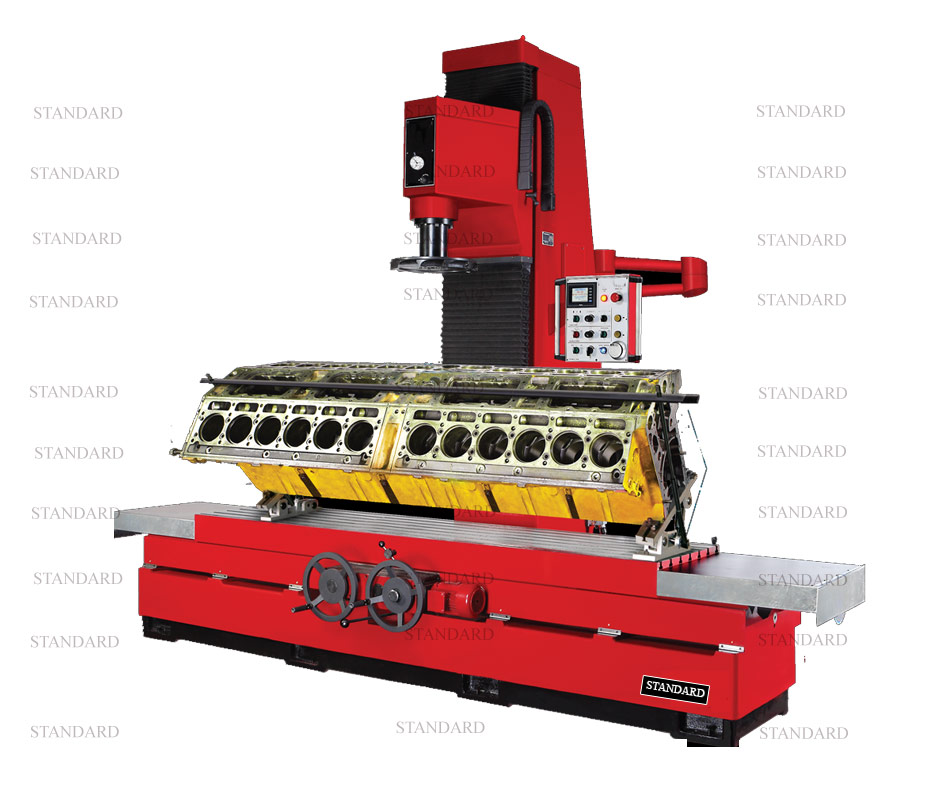

VERTICAL CYLINDER FINE BORING MACHINE

This modern new generation boring machines with new technologies like servo motors controlled by programmable logic controls. And operating is very easy.

Other Models

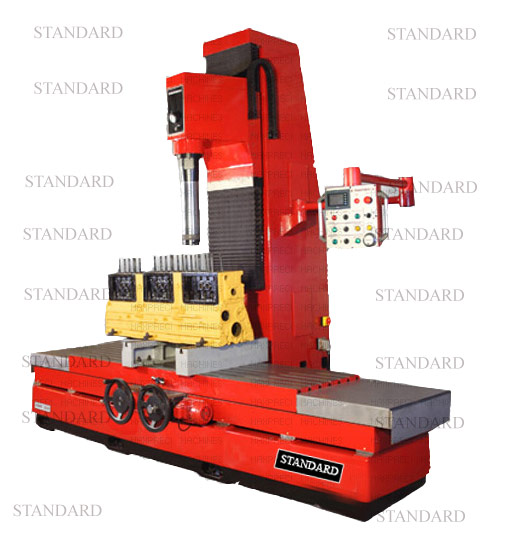

VCBM 2200

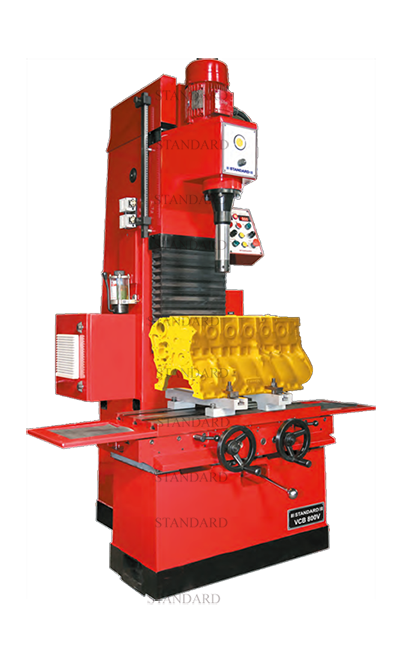

VCBM1500V

VCB1500

Zoom Image

Other Models

VCBM 1200V

VCB800V

Zoom Image

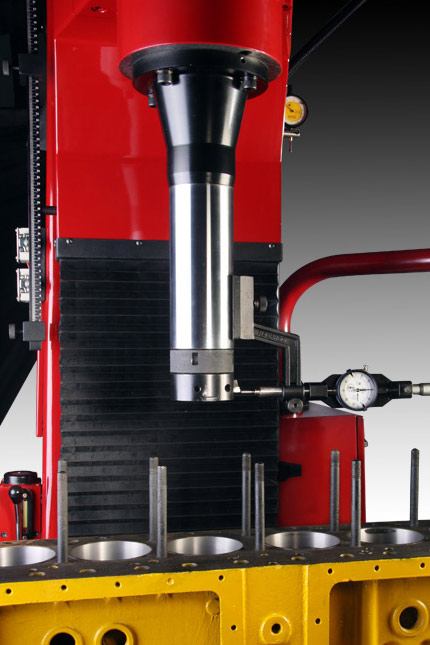

Easy & quick bore centering and machining positioning is possible with in built dial indicator.

Zoom Image

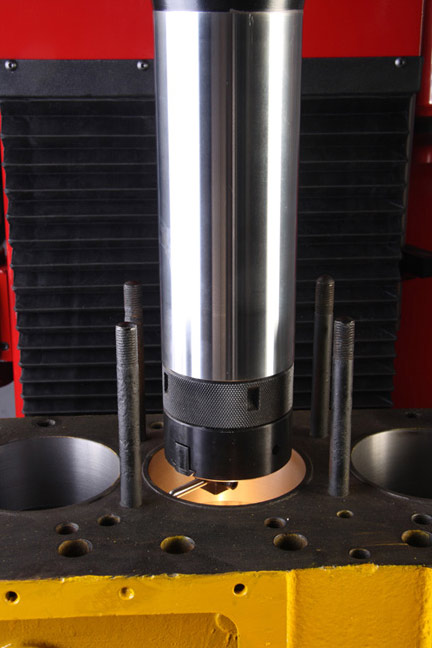

In boring spindle, you can take up the tool setting micrometer, for advantage accurate repeatable tool setting.

Zoom Image

Easy & accurate measure the depth of face with dial indicator.

TECHNICAL SPECIFICATIONS	VCBM 2500	VCBM 2200	VCBM 1500V	VCB 1500V	VCBM 1200V	VCB 1200V
BORING CAPACITY	62 - 265 MM	62 - 265 MM	48 - 220 MM	48 - 220 MM	62 - 135 MM	62 - 135 MM
BORING CAPACITY WITH EXTRA SPINDLE	-	38 -350 MM	38 - 310 MM	38 - 310 MM	38 - 190 MM	38 - 190 MM
MILLING LENGTH	2300 MM	1800 MM	1350 MM		1250 MM
MILLING WIDTH	400 MM	400 MM	350 MM		350 MM
MAXIMUM BORING HEAD TRAVEL	850 MM	850 MM	700 MM	700 MM	600 MM	600 MM
MAXIMUM DISTANCE HEAD TO TABLE	1500 MM	1500 MM	1340 MM	1340 MM	1300 MM	1300 MM
MAXIMUM DISTANCE BETWEEN OUTER CYLINDER CENTER	2500 MM	1800 MM	1200 MM	1200 MM	900 MM	900 MM
MAX WORK PIECE ON TABLE	-	2500 KG	1000 KG	1000 KG	750 KG	750 KG
SPINDLE SPEED MOTOR	2.2 KW / 3 HP	2.2 KW / 3 HP - 1440 RPM	1.5 KW / 2 HP	1.5 KW / 2 HP	1.5 KW / 2 HP	1.5 KW / 2 HP
MOTOR RAPID & FEED	-	0.4 KW SERVO CONTROL MOTOR	0.37 KW / 0.5 HP	0.37 KW / 0.5 HP	0.37 KW / 0.5 HP	0.37 KW / 0.5 HP
MOTOR TABLE TRAVERSE LONGITUDINAL	2700 MM	0.37 KW / 0.5HP	0.37 KW / 0.5HP		0.37 KW / 0.5HP
SPINDLE SPEEDS	50 - 750 RPM	50 TO 750 (INFINITELY VARIABLE)	50 TO 750 (INFINITELY VARIABLE)	INFINITY VARIABLE 50 TO 750 RPM	INFINITY VARIABLE 50 TO 750 RPM	INFINITY VARIABLE 50 TO 750 RPM
SPINDLE FEEDS	-	10 TO 100 MM / MIN	12 - 100 MM / MIN	12 - 100 MM / MIN	12 - 100 MM / MIN	12 - 100 MM / MIN
MAXIMUM DISTANCE FROM SPINDLE CENTRE TO COLUMN	500 MM	500 MM	410 MM	410 MM	360 MM (14.17")	360 MM
WORKING TABLE SIZE (L X W)	2500 x 600 MM	2200 MM x 600 MM	1500 x 450 MM	1500 x 450 MM	1200 x 360 MM	1200 x 360 MM
TABLE TRAVERSE - LONGITUDINAL	2700 MM	2050 MM	1850 MM	1350 MM	1300 MM	850 MM
TABLE TRAVERSE - CROSS WISE	150 MM	150 MM	120 MM	120 MM	75 MM	75 MM
LENGTH OF THE MACHINE	3300 MM	3300 MM	2800 MM	2500 MM	2200 MM	1900 MM
WIDTH OF THE MACHINE	1800 MM	1800 MM	1440 MM	1420 MM	1300 MM	1300 MM
HEIGHT OF THE MACHINE	3050 MM	3050 MM	2525 MM	2525 MM	2440 MM	2440 MM
WORK SPACE REQUIRED ( L X W)	4500 X 1850 MM	4400 x 1850 MM	4050 x 1520 MM	4050 x 1520 MM	2880 x 1400 MM	2800 x 1700 MM
NET WEIGHT	5000KGS	4800 KGS	3500KGS	3000 KGS	2650 KGS	2500 KGS
GROSS WEIGHT	6000 KGS	5800 KGS	4000KGS	3500 KGS	3300 KGS	3200 KGS
SHIPPING VOLUME	15m3	15 M3	9.5M3	9 M3	9M3	7M3

STANDARD ACCESSORIES	VCBM2200	VCBM1500V	VCB1500V	VCBM1200V	VCB1200V
SETTING UP PARALLEL 100MM	1 PAIR	1 PAIR	1 PAIR	1 PAIR	1 PAIR
SETTING UP PARALLEL 200MM	1 PAIR	1 PAIR	1 PAIR	1 PAIR	1 PAIR
SETTING UP PARALLEL 300MM	1 PAIR
BORING SPINDLE DIA 46MM WITH CENTRING DEVICE		1NO	1NO
BORING SPINDLE DIA 60MM WITH CENTRING DEVICE	1 NO	1 NO	1 NO	1 NO	1 NO
BORING SPINDLE DIA 85MM WITH CENTRING DEVICE	1 NO	1 NO	1 NO	1 NO	1 NO
BORING SPINDLE DIA 125MM WITH CENTRING DEVICE	1 NO
BORING HEAD DIA 125 WITH CENTRING DEVICE		1 NO	1 NO
BORING HEAD DIA 175 WITH CENTRING DEVICE	1 NO	1 NO	1 NO
BORING HEAD DIA 225 WITH CENTRING DEVICE	1 NO
BORING TOOL DIA 18 X 37MM LONG		1 NO	1 NO
BORING TOOL DIA 18 X 47MM LONG	1 NO	2 NOS	2 NOS	1 NO	1 NO
BORING TOOL DIA 18 X 70MM LONG	2 NOS	2 NOS	2 NOS	2 NOS	2 NOS
BORING TOOL DIA 18 X 95MM LONG	4 NOS	3 NOS	3 NOS	1 NO	1 NO
CHAMFERING TOOL 46MM LONG		1 NO	1 NO
CHAMFERING TOOL 60MM LONG	1 NO	1 NO	1 NO	1 NO	1 NO
CHAMFERING TOOL 85MM LONG	4 NOS	3 NOS	3 NOS	1 NO	1 NO
C' SPANNER FOR DIA 85 SPINDLE		1 NO	1 NO
C' SPANNER FOR DIA 125 SPINDLE	1 NO
HEAD LOOSENING ROD	1 NO	1 NO	1 NO
TOOL SETTING MICRO METER ASSEMBLY	1 NO	1 NO	1 NO	1 NO	1 NO
TOOL SETTING MICRO METER FIXING BRACKET & KNOB	3 NOS	2 NOS	2 NOS	1 NO	1 NO
ALLANKEY SET (9NOS)	1NO	1NO	1NO	1NO	1NO
TABLE GIB ADJUSTING HANDLE				1 NO	1 NO
DOUBLE END SPANNER 24/26	1 NO	1 NO	1 NO	1 NO	1 NO
DOUBLE END SPANNER 30/32	1 NO
T BOLT WASHER WITH NUT	20 NOS	16 NOS	16 NOS	12 NOS	12 NOS
BLOCK TIGHTENING CLAMP	4 NO	4 NOS	4 NOS	4 NO	4 NO
MILLING SPINDLE	1 NO	1 No		1 NO
MILLING TOOLS INSERTER TYPE	8 NOS	1 NO
OIL GUN	1 NO	1 NO	1 NO	1 NO	1 NO
LEVELLING PLATE WITH BOLT	10 NOS	3 NOS	3 NOS	3 NOS	3 NOS
FOUNDATION BOLT WASHER & NUT	10 NOS	3 NOS	3 NOS	3 NOS	3 NOS
T HANDLE ALLENKEY 4MM	1 NO	1 NO	1 NO	1 NO	1 NO
T HANDLE ALLENKEY 5MM	1 NO	1 NO	1 NO	1 NO	1 NO
LIFTING HOLE COVER	2 NOS	2 NOS	2 NOS	2 NOS	2 NOS
DEPTH SETTING DEVICE WITH DIAL		1 NO		1 NO
OPERATION MANUAL	1 NO	1 NO	1 NO	1 NO	1 NO

	OPTIONAL ACCESSORIES
	BORING SPINDLE DIA 36 MM
	BORING HEAD DIA 225 MM
	BORING HEAD DIA 275 MM
	BORING HEAD DIA 300 MM
	SETTING UP PARALLEL 130 MM HEIGHT
	QUICK CLAMPING FIXTURE
	V TYPE BLOCK CLAMPING FIXTURE ADJUSTABLE
	UNIVERSAL ANGLE FIXTURE (60* & 90*)
