CONNECTING ROD BORING MACHINE


Zoom Image
CONNECTING ROD BORING MACHINE
Con-rod boring machines is solid & viberation free structure, main advantage is speed & feed is varriable, accurate tool setting in microns, and excellent boring finish.

Other Models

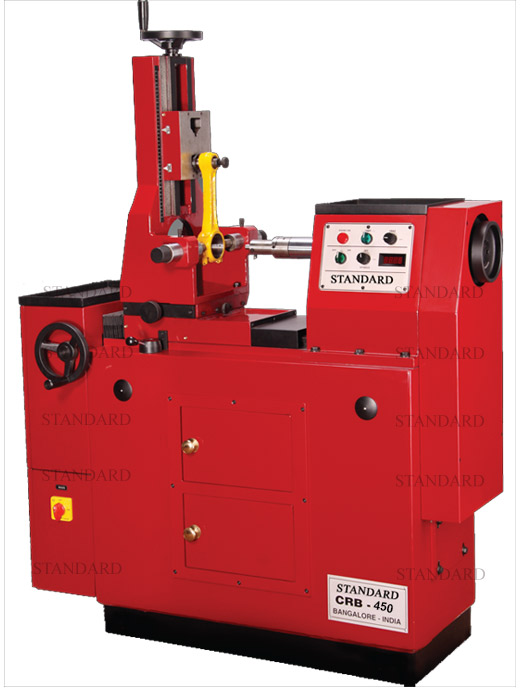

CRB 450

Zoom Image

Zoom Image

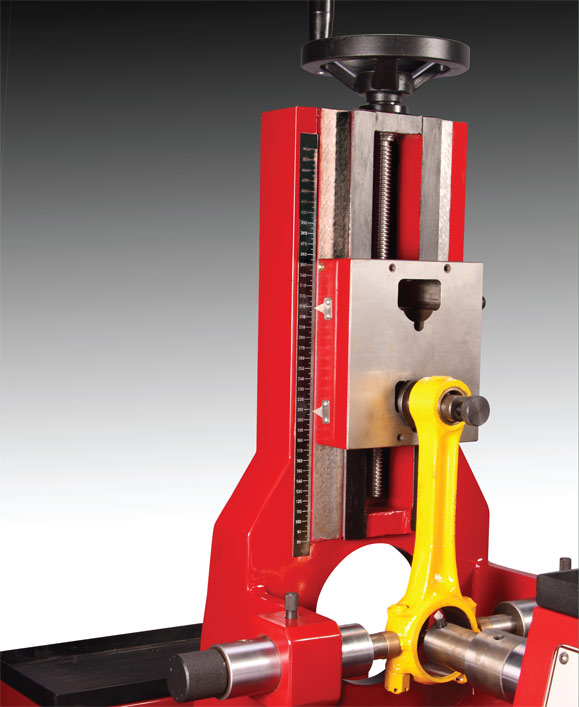

A Bore centering dial gauge for helps quick truing of bore with in actual machining position.
Zoom Image

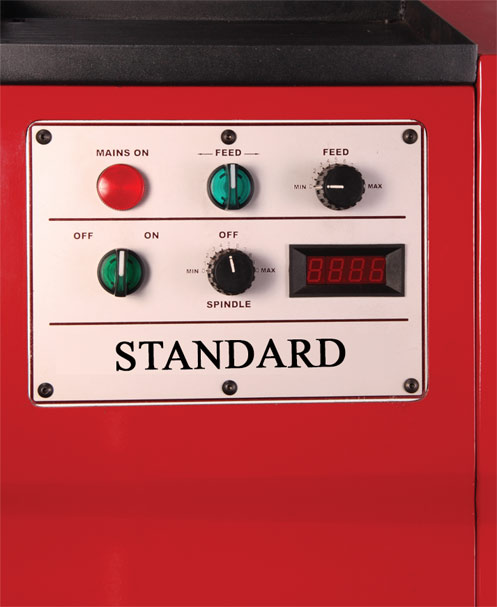

LCD Display is the friendly feature for quick identification of boring speeds.


TECHNICAL SPECIFICATIONS CRB 600 CRB 450
  BORE CENTER DISTANCE 80 MM TO 600 MM (3.1" X 23.6") 80 MM TO 450 MM (3.1" X 17.7")
  BORING SPINDLE SPEED INFINITY VARIABLE 100 -1000 RPM INFINITY VARIABLE 100 -1000 RPM
  BORING RANGE 15 MM TO 175 MM (0.6"- 7") 15 MM TO 140 MM (0.6"-5.5")
  BOTTOM PART TRAVERSE CROSSWISE 50 MM (1.97") 50 MM (1.97")
  TABLE MOVEMENT LONGITUDINAL 300 MM (11.8") 300 MM (11.8")
  A.C MOTOR 1.5 KW / 2 HP 1.5 KW / 2 HP
  D.C. MOTOR 0.19 KW / 0.25 HP 0.19 KW / 0.25 HP
  LENGHT OF THE MACHINE 1300 MM (51") 1300 MM (51")
  WIDTH OF THE MACHINE 800 MM (31.5") 800 MM (31.5")
  HEIGHT OF THE MACHINE 1850 MM (73") 1700 MM (67")
  WORK SPACE REQUIRED(LxWxH) 1800 MM X 1100 MM X 2000 MM (71"x43"x79") 1800MM X 1100 MM X 1850 MM (71"x43"x73")
  NET WEIGHT(APPROX) 775 KGS 725 KGS
  GROSS WEIGHT(APPROX) 1100 KGS 925 KGS
  SHIPPING VOLUME 3 M3 3M3
  PACKING CASE OUTER SIZE(LxWxH) 1500 MM X 950 MM X 2055 MM 1500 MM X 950 MM X 1905 MM

  STANDARD ACCESSORIES CRB 600 CRB 450
  BORING SPINDLE DIA 14 1 NO 1 NO
  BORING SPINDLE DIA 25 1 NO 1 NO
  BORING SPINDLE DIA 40 1 NO 1 NO
  BORING SPINDLE DIA 90 1 NO 1 NO
  BORING TOOL 6 NOS 6 NOS
  TSM. FRAME SMALL 1 NO 1 NO
  TSM FRAME BIG WITH KNOB 1 NO 1 NO
  TOOL SETTING MICROMETER 1 NO 1 NO
  CENTERING DEVICE 1 NO 1 NO
  NYLON PLUG 4 NOS 4 NOS
  CON-ROD FIXING “V” BLOCK WITH PIN 1 NO 1 NO
  CON ROD CLAMPING COLLAR DIA 28 MM 1 NO 1 NO
  CON ROD CLAMPING COLLAR DIA 40 MM 1 NO 1 NO
  CON ROD CLAMPING COLLAR DIA 48 MM 1 NO 1 NO
  CON ROD CLAMPING COLLAR DIA 75 MM 1 NO 1 NO
  CON ROD CLAMPING COLLAR DIA 100 MM 1 NO 1 NO
  TAPER PINS FOR CON ROD CLAMPING 10 NOS 10 NOS
  TOOL ADJUSTING BRACKET WITH KNOB 1 NO 1 NO
  CENTRING CONE SMALL 1 NO 1 NO
  CENTRING CONE BIG 1 NO 1 NO
  OIL GUN 1 NO 1 NO
  ALLEN KEY SET (9 NOS) 1 NO 1 NO
  FOUNDATION BOLT WITH NUT 4 NOS 4 NOS
  LEVELLING PLATE WITH BOLT 4 NOS 4 NOS
  ECCENTRICAL PLUG 1 NO 1 NO
  LIFTING HOLE COVER 4 NOS 4 NOS
